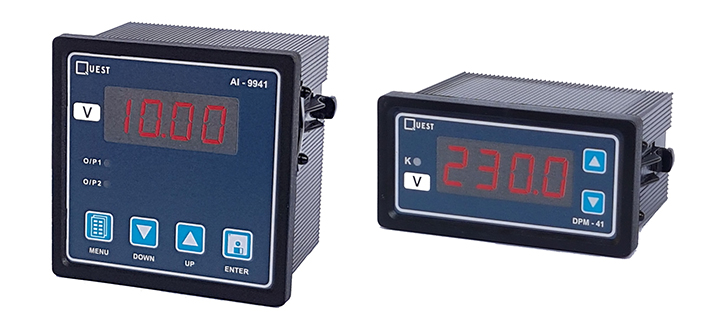

AC VOLT METER

AC VOLT METER

MODEL NUMBER : DPM-41VA

Digital Volt meter to measure voltage of any electrical system or equipment. Optionally P.T. ratio is programmable with soft keys provided on front of the panel. These settings are password protected. Instrument is designed to be used for any non-standard (programmable) P.T. ratio.

INPUT 20 – 650V AC
DISPLAY 4 Digit 0.56” Seven Segment High Bright LED
METHOD True RMS / Average    (Optional)
DECIMAL POINT Auto selection according to P.T. ratio (Optional)
POWER SUPPLY 230 V AC ± 15 %
ACCURACY 0.5 % of full scale ± 1 Digit + P.T. Accuracy
ENCLOSURE SIZE (mm) 96X96X65, 48X96X65
AMBIENT TEMPERATURE 0-60 °C
STORAGE TEMPERATURE 0-70 °C
HUMIDITY 0-95 % RH (non-condensing)
