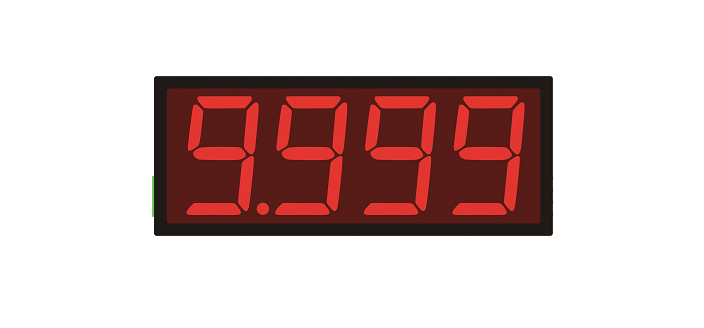

4 DIGIT JUMBO-DISPLAY PROCESS INDICATOR
MODEL NUMBER : 1224,1244,1264,1284
Process Indicator to accept almost all the inputs used in the process industry like Temperature, pressure, level, flow, humidity, pH, Conductivity etc . Microcontroller based instrument with 4-digit Jumbo display process indication. The unit can be scaled for both zero and span, to display in engineering units. The decimal point position, Offset, Input filter, Baud Rate and Unit ID for communication is also selectable. Any process value can be programmed. Soft keys provided on side of the panel for easy setting with password protection. The unit is equipped with RS485 MODBUS RTU to communicate with any type of PLC or SCADA.
| PROCESS INPUT | Selectable - Thermocouple (J, K, R, S, T, E, N) & RTD (PT-100), 0-1V DC, 0.2-1V DC, 0-5V DC, 1-5V DC,0-10V DC, 2-10V DC, 0-20mA, 4-20mA |
| DISPLAY | 4 Digit 2.3”, 4”, 6” and 8” Seven Segment High Bright LED |
| DISPLAY RANGE | -1999 TO +9999 |
| DECIMAL POINT | Selectable (0, 0.0, 0.00, 0.000) |
| SENSOR EXCITATION | 24V DC ± 10 % for sensor supply ( isolated ) |
| POWER SUPPLY | 230 V AC ± 10 % |
| INPUT SHIFT PARAMETER | -99.9 to +99.9 |
| INPUT FILTER | 1 to 30 Sec. |
| COMMUNICATION | RS-485 MODBUS RTU |
| BAUD RATE | Programmable from 110 bps to 115.2 Kbps |
| DEVICE I.D. | Programmable 1 - 32 |
| ENCLOSURE SIZE (mm) | 260 x 640 x 60 Metal powder coated. |
| AMBIENT TEMPERATURE | 0-60 °C |
| STORAGE TEMPERATURE | 0-70 °C |
| HUMIDITY | 0-95 % RH (non-condensing) |
